Suits: Haltech Version 2 CAN bus protocol.

Includes: 52mm (2") CAN Gauge, gaugeART DTM-style CAN cable - 2.5m (8ft), mounting bracket.

Notes: This product is direct Plug'n'Play compatible with an Elite ECU CAN port, Elite ECU Harness CAN connector or multiple CAN device installation using an Elite 4 Port CAN HUB. If you are connecting this product with a Platinum Series ECU you will need a DTM4 to Tyco adaptor cable Part No. HT-130040.


OVERVIEW

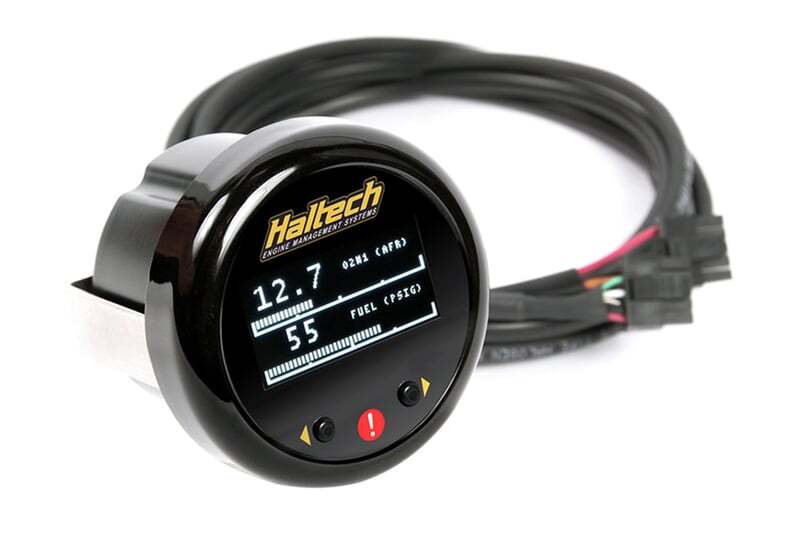

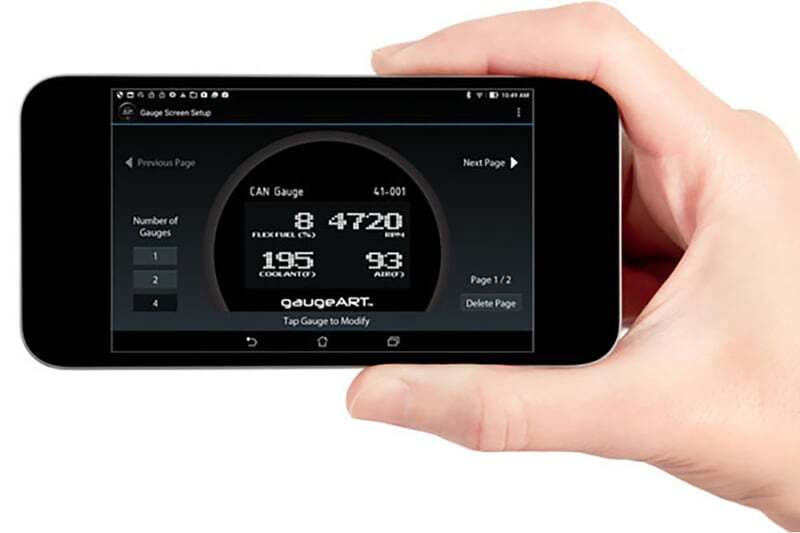

Haltech's new Multi-function CAN Gauge displays real-time data from your Haltech ECU.Easily customize your gaugeART CAN Gauge to display the data you want to see with the included gaugeART CAN Gauge App (requires Android 4.4 or later or Apple iOS 9.1 or later). The easy to use app on your smartphone or tablet uses a wireless connection to the gauge for easy setup and customization.
  • Set up via gauge-mounted buttons or a mobile app
  • High contrast, dimmable OLED display

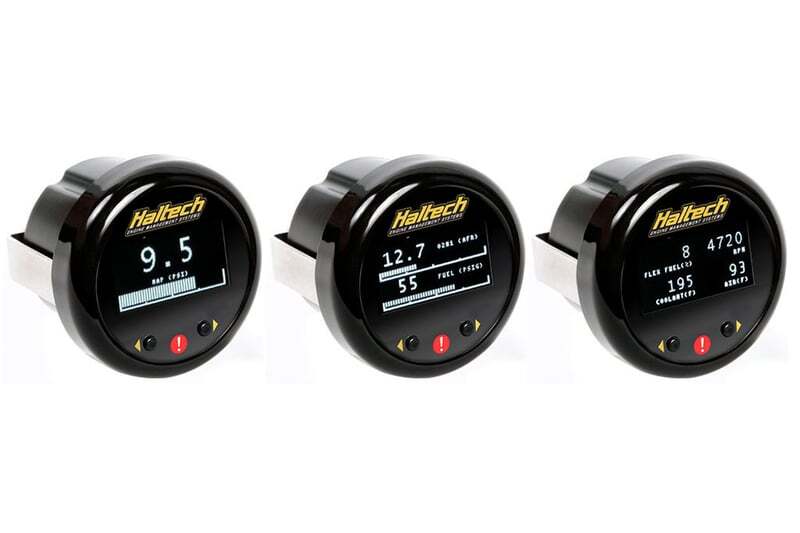

  • 1, 2, or 4 gauge layouts on up to 10 different pages
  • Custom warning points with special warning screens

FEATURES

SUPPORTED PARAMETERS
  • Boost Pressure
  • Air/Fuel Ratio
  • Coolant Temperature
  • Fuel Pressure
  • Ethanol content
  • Air Temperature
  • Battery Voltage
  • Coolant Pressure
  • Fuel Level
  • Fuel Trim
  • Gear Position
  • Injector Duty
  • Nitrous Pressure
  • Oil Pressure
  • Transmission Line Pressure
  • Throttle Position
  • Transmission Oil Temperature
  • Turbo RPM
  • Wheel Speed
  • Wheel Slip
  • All above can be displayed without additional sensors.
COMPATIBLE WITH
  • Haltech Platinum Sprint Series
  • Haltech Platinum Sport Series
  • Haltech Pro Plugin Series
  • Haltech Elite Series
  • Haltech Nexus Series
