EWP®150 BLACK Combo Remote Electric Water Pump & Controller (12V) (Part #8975)

Celebrating 50 years of Davies Craig Pty Ltd, the **BLACK LABEL** Limited Edition EWP®150 Remote-Mounted Electric Water Pump features a stunning matte-black powder-coated finish. This advanced pump delivers exceptional performance, compactness, and style, designed for modern engine cooling needs.

Ideal for high-horsepower, turbocharged, supercharged, and modified engines, this pump includes the LCD EWP®/Fan Digital Controller for optimal cooling control. It also prevents "heat soak" after engine shutdown, extending engine life and improving efficiency.

The EWP®150 eliminates parasitic power losses of mechanical pumps, delivering up to 10kW (13hp) of extra power and increased torque. This pump is extensively used in intercooler and high-performance applications.

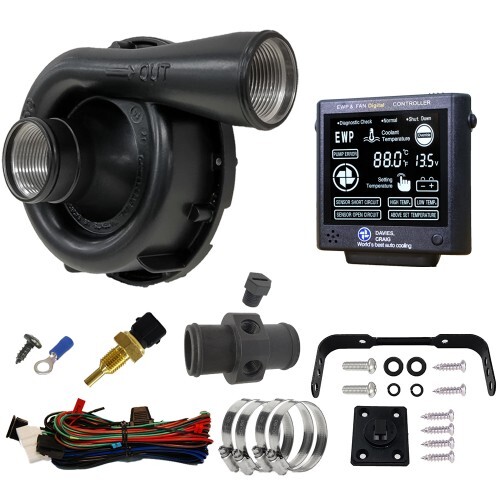

COMBO CONTENTS

Part Description Units
EWP®150 Alloy 1
EWP®/Fan Digital Controller & Mounting Plate + Bracket 1
Sensor Thermal - Coolant Temp - 1/4" NPT Thread 1
Adaptor - Nylon - Inline, 38mm (2 x 1/4" NPT) 1
1/4" NPT Nylon Bung 1
Wiring Harness 1
Hose Clamps 4
Screw - Self Tap 8x3/8 BZ 1
Blue 6mm Ring Terminal 1

TECHNICAL SPECIFICATIONS

Operating Voltage 3V DC to 15V DC Voltage Range (Controller) 12V DC to 29V DC
Maximum Current 10A @ 13V Display LCD Size 64.6mm x 55.6mm
Flow Rate (Max) 162 L/min (42.8 US gal/min) Maximum Current (Controller) 12 Amps
Operating Temp. -40°C to 120°C (-40°F to 248°F) Warning Alarm High/Low Temp, Sensor Errors, Voltage Issues
Pump Weight 1170 grams (2.6 lbs) Targeted Temperatures 40°C to 110°C (104°F to 230°F)
Pump Material Aluminum (Powder Coated) Fan Cut-In Temp +3°C above target
Burst Pressure 500 kPa (72.5 PSI) Overrun/Shutdown -10°C below target or 3 minutes
Seal Ceramic Face Seal Fits Hose Sizes 35mm to 51mm (1?" to 2")

EWP & Controller Installation Demonstration
