EWP®140 (Black) Kit Remote Electric Water Pump (12V) (Part #8090)

The EWP®140 Electric Water Pump delivers 147 litres per minute of coolant flow, ideal for larger, high-horsepower, turbocharged, or supercharged engines. This pump enhances engine cooling control and efficiency while delivering increased power and torque.

Designed for universal engine fitment, the EWP®140 can replace or complement mechanical water pumps, eliminating parasitic power losses and freeing up to 10kW (13hp). It is also widely used in intercooler applications and high-performance setups.

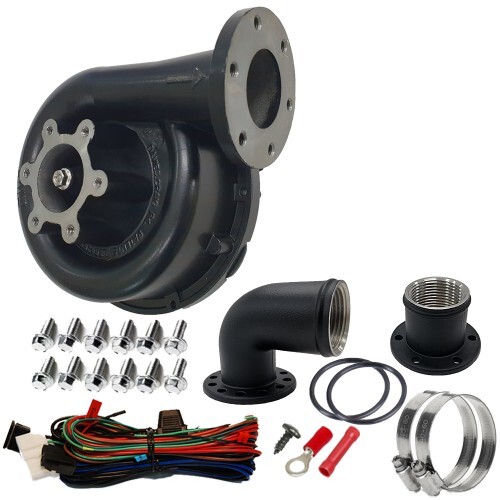

KIT CONTENTS

Part Description Units
EWP®140 (Black) - Alloy Pump 12V Assembly 1
Red Wire Joiner 1
Screw - Self Tap 8x3/8 BZ 1
Red 6mm Ring Terminal 1
5x12 Flanged Hex Set Screw Zinc Silver 12
Relay - 12V 40 Amp 5 Pin with Resistor Protection 1
Adapter Alloy 90° 38mm (1½") 1
Adapter Alloy Straight 38mm (1½") 1
EWP Adapter O-Ring 2
Hose Clamps 2
EWP Basic Pump Loom 1

TECHNICAL SPECIFICATIONS

Voltage 12 Volt Pump
Operating Voltage 3V DC to 15V DC
Maximum Current 10A @ 13V
Flow Rate (Max) 147 L/min (38.8 US gal/min) @ 13V DC
Operating Temp. -40°C to 120°C (-40°F to 248°F)
Pump Weight 1226 grams (2.7 lbs)
Pump Material Aluminum (Powder Coated)
Burst Pressure 500 kPa (72.5 PSI)
Seal Ceramic Face Seal
Fits Hose Sizes 35mm to 51mm (1?" to 2")

EWP & Controller Installation Demonstration
