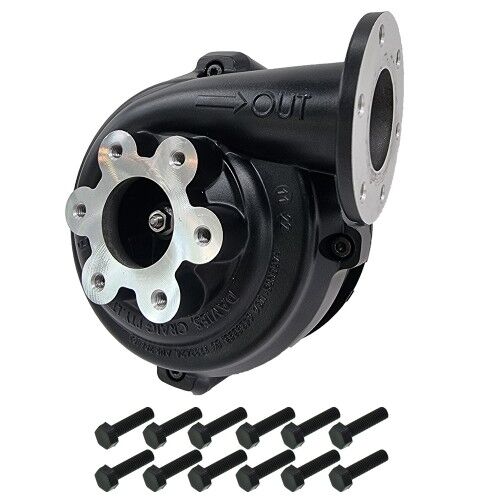

EWP®80 Alloy Flange Remote Electric Water Pump (12V) (Part #8106)

The EWP®80 Alloy Flange provides a high-performance, compact, and lightweight solution for engine cooling, replacing belt-driven pumps or functioning as an auxiliary pump. It fits most vehicle makes and models with naturally aspirated engines up to two litres (2000cc).

This pump is manufactured from lightweight aluminum and features six-bolt flange fittings on both the inlet and outlet for superior fitment flexibility. With 35mm (1-3/8") straight and 90° elbow push-on barb fittings, it offers easy installation in various applications.

The EWP®80 enhances engine cooling control, improves fuel economy, and eliminates parasitic power losses, providing up to 10kW (13hp) of extra power and increased torque.

CONTENTS

Part Description Units
EWP®80 - Alloy Flange 1
5x12 Flanged Hex Set Screw Zinc Silver 12
Installation Instructions 1

TECHNICAL SPECIFICATIONS

Operating Voltage 12V DC (16V Maximum)
Maximum Current 7.5A @ 13V
Flow Rate (Max) 90 L/min (23.8 US gal/min)
Maximum Head Height 5.2m (17ft)
Operating Temp. -40°C to 120°C (-40°F to 248°F)
Pump Weight 1100 grams (2.43 lbs)
Motor Type Brushed DC Motor
Body Material Aluminum
Burst Pressure 500 kPa (72.52 PSI)
Inlet & Outlet 6 Bolt Flange, 35mm Push-on Barb
Hose Fitment 32mm to 38mm (1-1/4" to 1-1/2")
Hose Fitment with 3mm Sleeve (Part #8510) 41mm to 44mm (1-5/8" to 1-3/4")
Hose Fitment with 6mm Sleeve (Part #8511) 47mm to 50mm (1-7/8" to 2")

EWP & Controller Installation Demonstration
