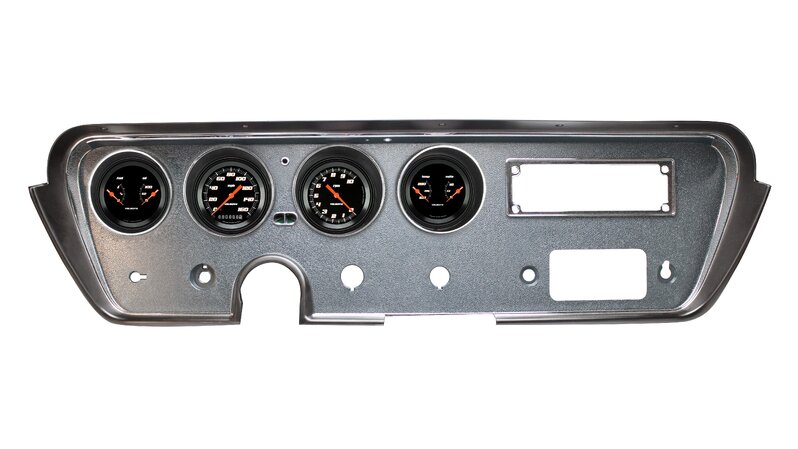

Our 1966 - 1967 GTO direct-fit package is an all-electric cluster featuring a speedometer and tachometer with a set of two dual gauges reading fuel/oil and temp/volts. It has green LED turn signal indicator(s), a blue high beam indicator in the dash housing. Mounting hardware and a wiring harness is included to install with the original bezel, diffuser, and lens and setup is a breeze with push-button speedometer calibration and built-in ECM signal filter switch. All other necessary sending units are included with a Classic Instruments GM sending unit kit, part no. SNGMNF, no fuel sending unit. Fuel gauge is calibrated to 0-90 ohm. Save space with Classic Instruments' Zeus Speedometer Technology built-in, meaning the cluster requires no external control boxes and works directly with ECM or VSS signals. **Dash bezel and lens not included (uses original bezel and lens)

Features:
Fits 1966 and 1967 Pontiac GTOs
Available in different design series with an OE style with original bezel, diffuser, and lens
Push-button speedometer calibration with built-in ECM signal filter switch
Classic Instruments’ Zeus Speedometer Technology is built-in meaning external control boxes are not needed
The standard sending unit kit included is Classic Instruments’ SNGMNF, fuel gauge is calibrated to 0-90 ohm
All-electric and includes all mounting brackets, hardware, and wiring harness
