HP & Torque: OEM

Cylinder Heads: Iron

Compression Ratio: OEM

Camshaft: Hydraulic Roller - .444 Intake / .445 Exhaust Lift and 210 Intake / 211 Exhaust Duration @ .050

Pistons: Cast Aluminum

Crankshaft: Steel Crank - 3.000" Stroke and 5.090" Rods



DETAILED INFORMATION

Description:

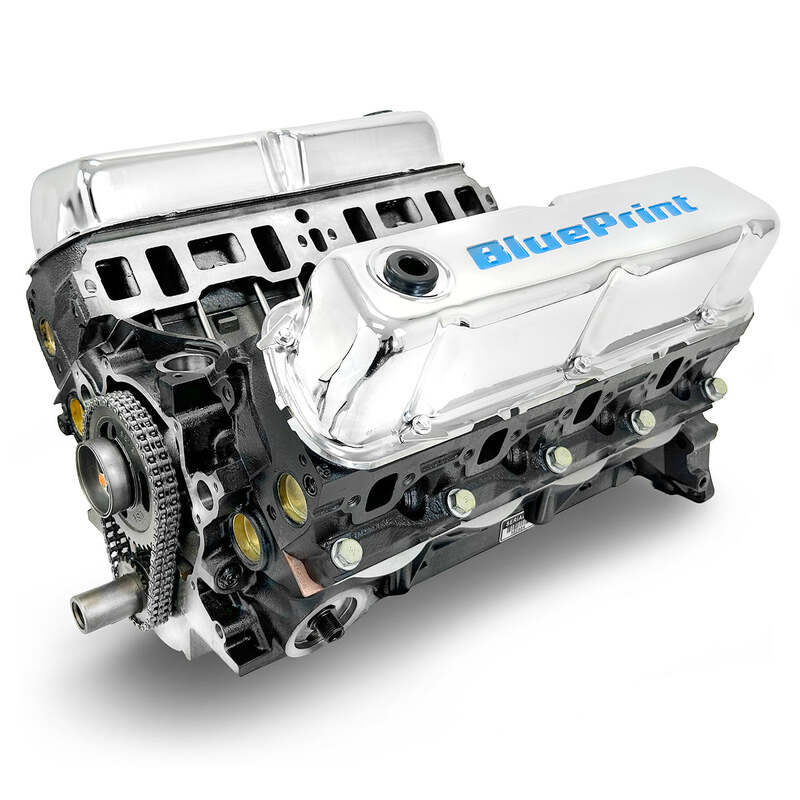

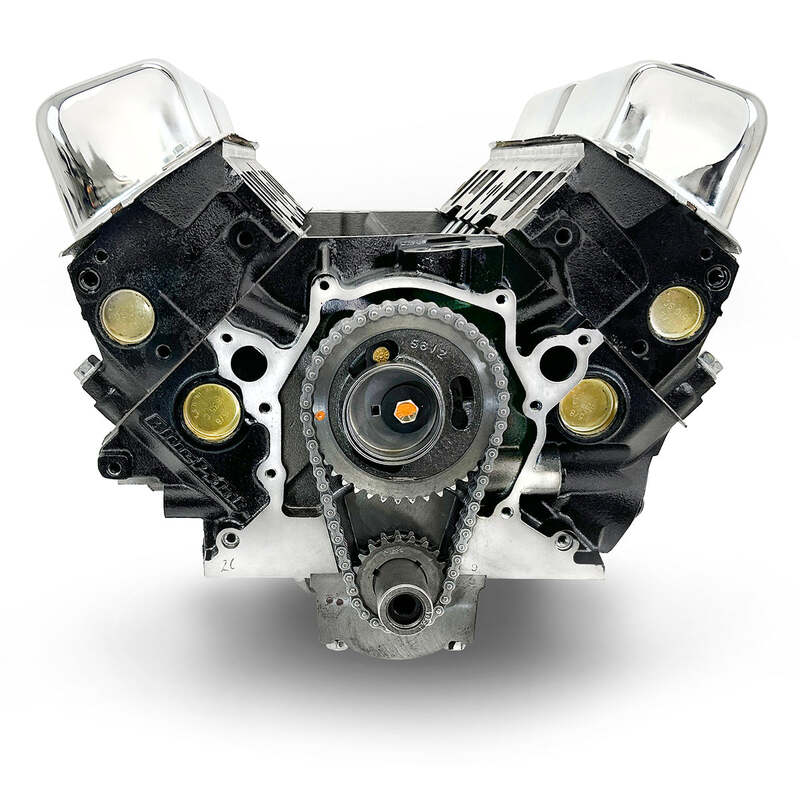

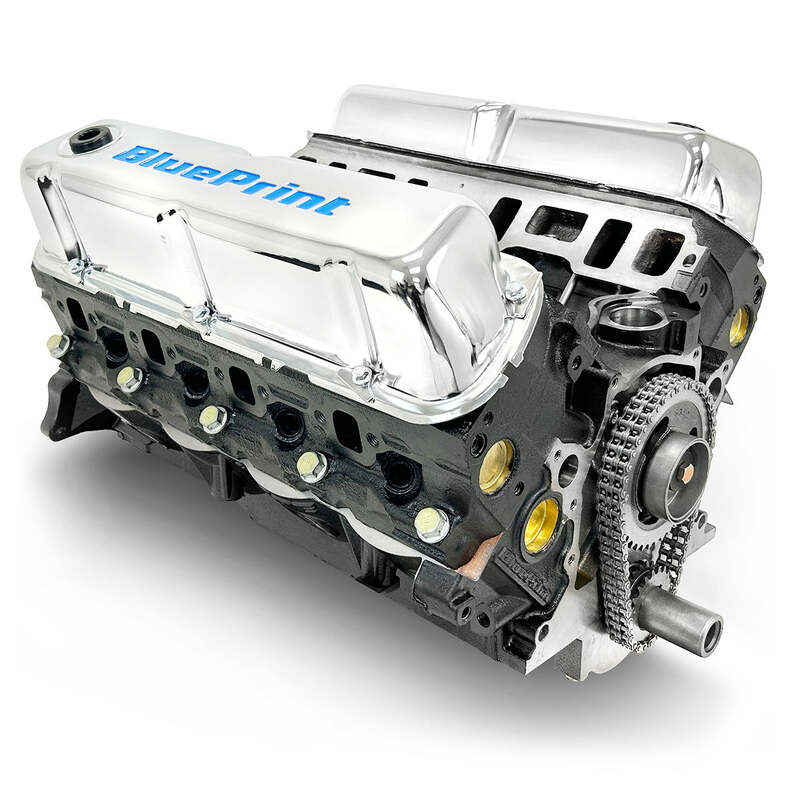

This engine is designed and manufactured to factory specs for the specified vehicles below. It's manufactured using tighter machining tolerances, higher quality components, and finer balancing of the rotating assembly to make this engine better than the original while still meeting the description of a “replacement” engine.

Block:

  • NEW BluePrint cast iron block
  • 4-bolt main
  • 4.000" bore
  • 1-Piece rear main seal

Rotating Assembly:

  • Ford, machined and balanced by BluePrint Engines
  • 3.000" Stroke
  • OEM type 5.090" connecting rods
  • OEM spec pistons
  • 50 oz External balance

Cylinder Heads:

  • Iron Heads

Cam Specs:

  • Cam Type: Roller
  • OEM Spec per listed vehicles
  • Firing order: 1-5-4-2-6-3-7-8

Ignition Timing:

  • OEM specifications

Also Includes:

  • NEW valve covers

Notes:

  • Designed as factory replacement long block for specified vehicles and year ranges, using OEM specification parts. Customer to re-use existing intake manifold, ecu (if equipped), exhaust, fuel system etc. Modification or replacement of provided tinware, and minor accommodations such as dipstick location may be required.
  • Specifically designed as an OEM spec engine to meet emissions requirements of the specified vehicles, to meet the criteria of "replacement engine" in all 50 states.
  • MUST see attached application list above for fitment.


Engine Accessory Specifications

Part Number: F3029293

Fuel Delivery Type: N/A

Spark Plug Gap: .054"

Harmonic Balancer: BPP50 - 50 Ounce, 6.4" Diameter

Flexplate/Flywheel: 50oz Externally balanced

Stall Converter: OEM

Intake Manifold: N/A

Fuel Recommendation: 87 Octane

Timing (Initial/Total Advance): Controlled by OEM ECU

Firing Order: 1-5-4-2-6-3-7-8

Total Oil capacity with production oil pan, and Correct BPP51515 Filter : 5 Quarts
