HP & Torque: OEM

Cylinder Heads: Cast Iron

Compression Ratio: OEM

Camshaft: Flat Tappet - .409 Intake / .442 Exhaust Lift and 193 Intake / 203 Exhaust Duration @ .050

Pistons: Hypereutectic

Crankshaft: Steel Crank - 4.000" Stroke and 6.135" Rods



DETAILED INFORMATION

Description:

This engine is designed and manufactured to factory specs for the specified vehicles below. It's manufactured using tighter machining tolerances, higher quality components, and finer balancing of the rotating assembly to make this engine better than the original while still meeting the description of a “replacement” engine.


Block:

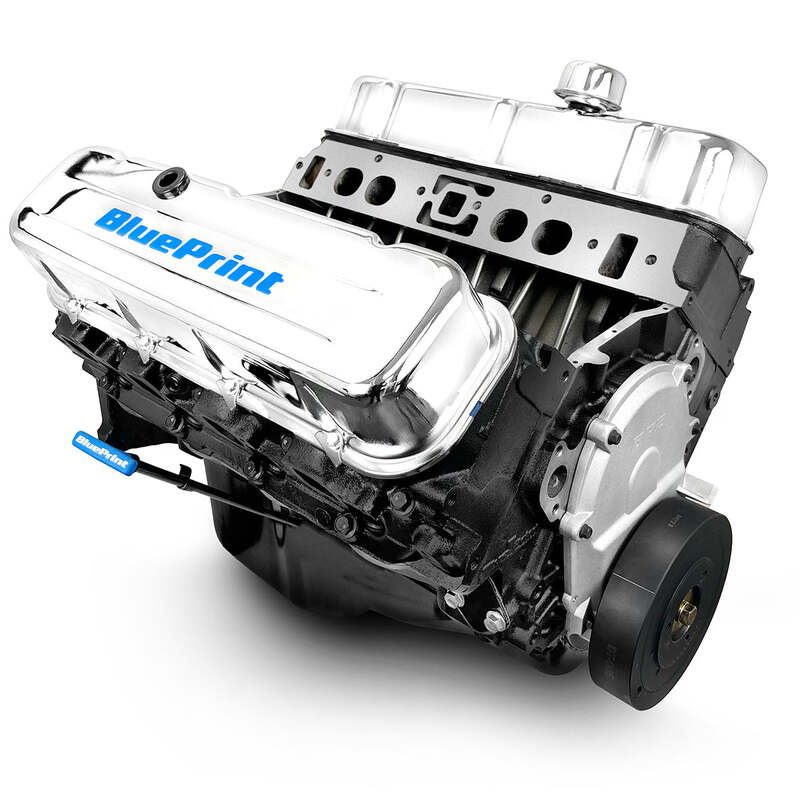

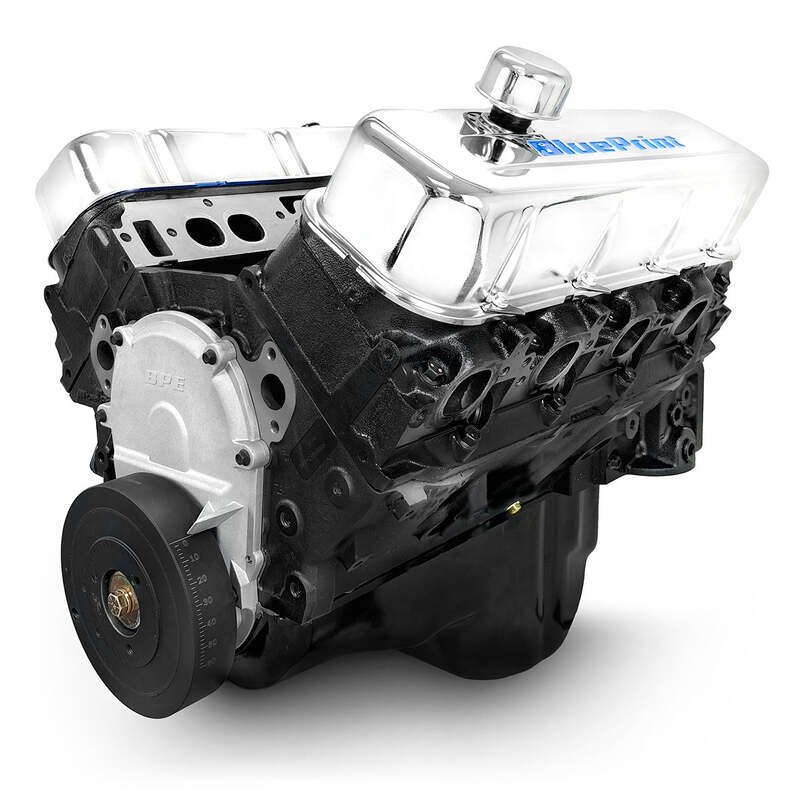

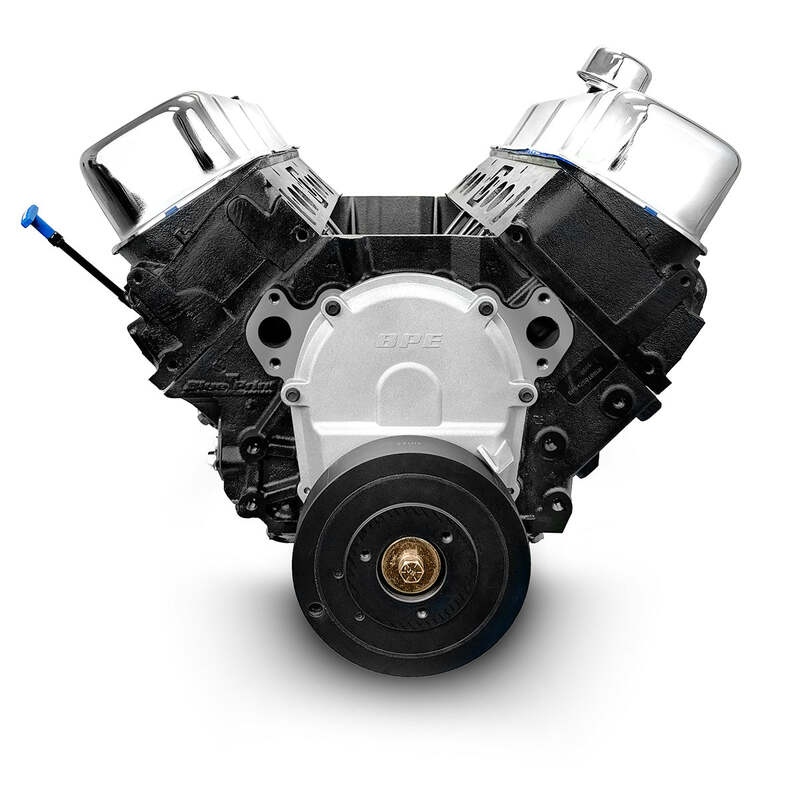

  • NEW BluePrint Cast Iron Block, 454 BBC
  • Manufactured and Machined in the USA!
  • 4-Bolt Main
  • 4.000" Stroke,
  • 1-Piece Rear Main Seal
  • Mech fuel pump provision: Yes
  • Standard Deck

Rotating Assembly:

  • New BluePrint 1 Piece Rear Main Seal steel crankshaft
  • 4.000" Stroke  4.250" Bore
  • OEM type 6.135" connecting rods w/ 150,000 psi bolts
  • OEM spec pistons
  • External Front Internal Rear

Cylinder Heads:

  • Iron Heads

Cam Specs:

  • Cam Type: Flat Tappet
  • OEM spec per listed vehicles

Ignition Timing:

  • OEM Specifications

Also Includes:

  • New valve covers
  • New timing cover

Notes:

  • Designed as factory replacement long block for specified vehicles and year ranges, using OEM specification parts. Customer to re-use existing intake manifold, ecu (if equipped), exhaust, fuel system etc. Modification or replacement of provided tinware, and minor accommodations such as dipstick location may be required.
  • Specifically designed as an OEM spec engine to meet emissions requirements of the specified vehicles, to meet the criteria of "replacement engine" in all 50 states.
  • MUST see attached application list above for fitment.
  • This engine features a 1-piece rear main seal crankshaft. If replacing an engine that was originally a 2-piece rear main seal, a new flex plate, or flywheel, will be required.
  • Features external 42.5 oz. imbalance. Recommend GM flywheel 14096987, or TCI flex plate 399973.



Engine Accessory Specifications

Part Number: G4547090

Fuel Delivery Type: OEM

Spark Plug: ACDELCO R44T

Spark Plug Gap: .044"

Harmonic Balancer: Weighted, 8" diameter

Flexplate/Flywheel: Weighted

Stall Converter: OEM

Intake Manifold: Dual plane, satin aluminum

Fuel Recommendation: 87 Octane

Timing (Initial/Total Advance): Controlled by OEM ECU

Firing Order: 1,8,4,3,6,5,7,2

Total Oil capacity with production oil pan, and Correct BPP51061 Filter : 8 Quarts
