HP & Torque: 800 HP / 780 FT. LBS

Cylinder Heads: BluePrint Engines LS3 Aluminum Cylinder Heads

Compression Ratio: 11:1

Camshaft: Hydraulic Roller Cam - .624 Intake / .624 Exhaust Lift and 239 Intake / 255 Exhaust Duration @ .050 - 114° LSA - Three Bolt Cam

Pistons: Forged

Crankshaft: Steel Crank - 4.125" Stroke and 6.125" Rods



DETAILED INFORMATION

Description:

  • HP & Torque: 800 HP / 780 FT LBS
  • Compression Ratio: 11:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Forged Crank
  • Forged Pistons

Block:

  • OEM Block Machined in the USA!
  • 6-Bolt Main
  • 4.060" Bored to 4.069
  • 1-Piece Rear Main Seal

Rotating Assembly:

  • New Forged Crankshaft
  • 4.125" stroke
  • Forged 6.125" connecting rods
  • Forged Pistons
  • Internal Balance

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads -PS8015
  • 72cc chamber
  • 2.165" intake/1.600" exhaust valves
  • 259cc intake/102cc exhaust runners

Cam Specs:

  • Roller
  • .624 intake .624 exhaust lift
  • 239 Intake / 255 Exhaust duration
  • @ .050, 114-degree lobe sep.

Ignition Timing:

  • ECM supplied with calibration
  • Not capable of transmission control
  • Transmission controller required if paired to an automatic

Also Includes:

  • 2.3L Magnuson TVS Super Charger

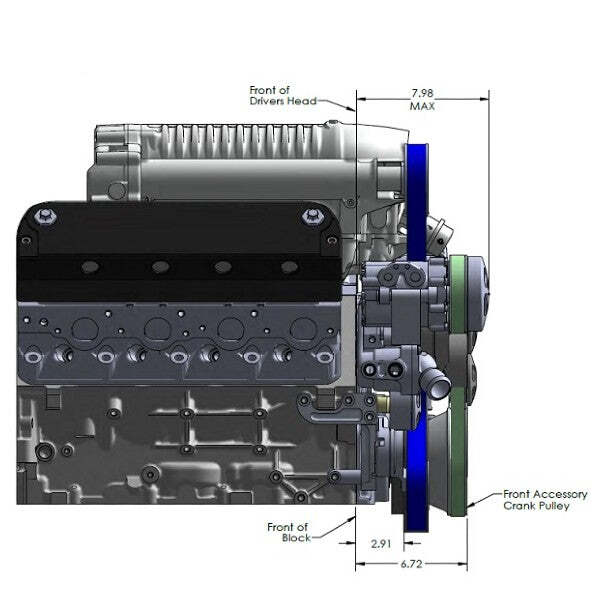

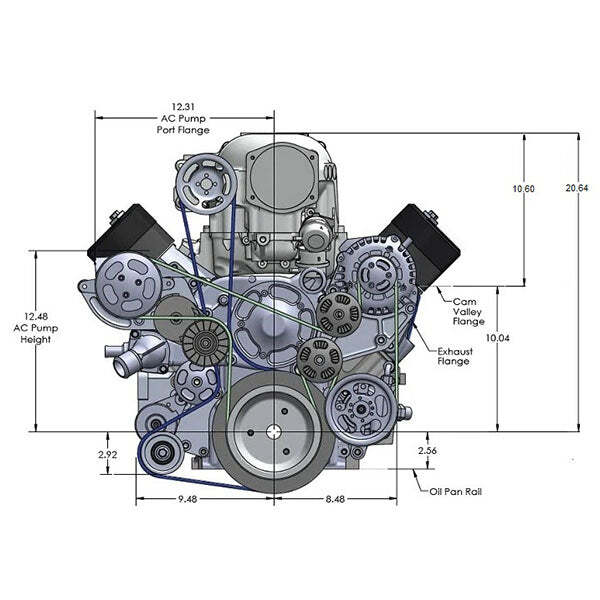

  • Installed Front pulley kit as pictured
  • 170 Amp single wire Alternator
  • GM Type 2 Power Steering pump
  • Sanden SD7 AC Compressor
  • Water Pump
  • Tensioners
  • Upgraded Mototron S107 Injectors
  • Electronic Fuel Injection
  • Coil Packs
  • Valve covers
  • Oil pan
  • All sensors required for engine to run

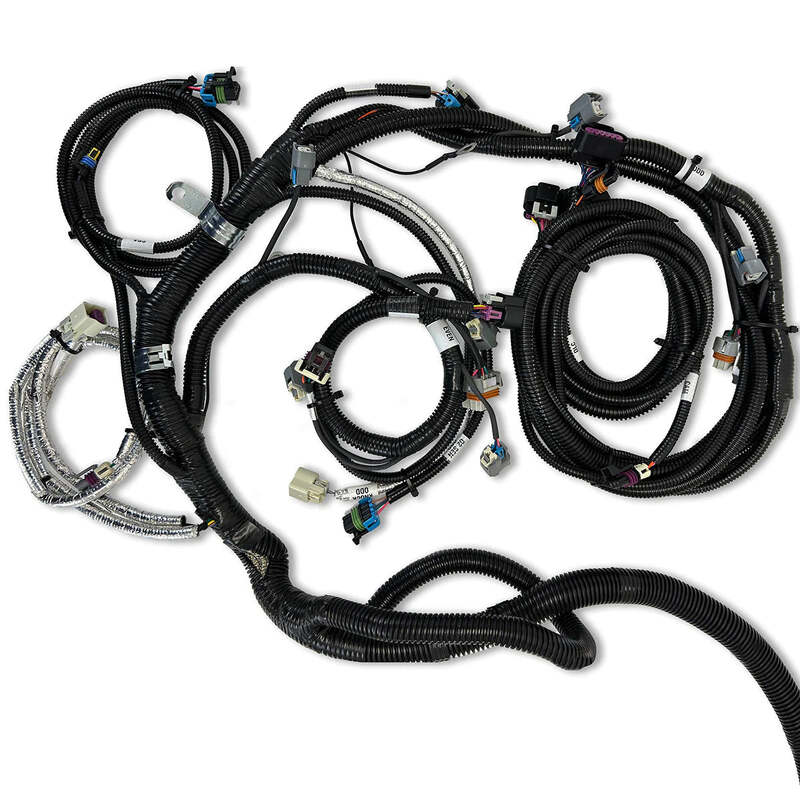

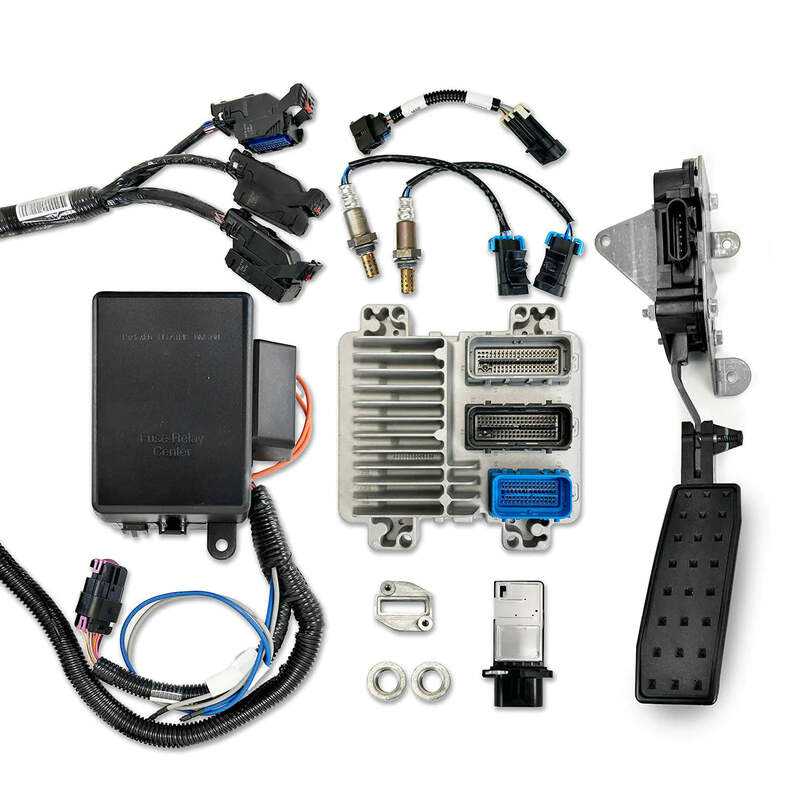

  • Complete ECU and Wiring harness package
  • Gas pedal
  • Drive by wire throttle body
  • Timing cover
  • Spark plugs
  • Spark plug wires
  • Harmonic balancer

Notes:

  • Not for use in pollution-controlled vehicles.
  • The Included LS controller package is for engine control only. Does not contain any transmission or body control. The ECU comes with calibration that is optimal for our engine, however, please note that vehicle parameters such as gearing, tire size, vehicle weight, air intake, headers, etc. may necessitate additional tuning once installed into your specific vehicle. The included ECU is unlocked for further refinement at your local dyno shop if required.
  • BluePrint Engines recommends Air Intake Kit  to ensure correct MAF calculations and Dyno calibration are maintained with the provided ECU / tuning.


Engine Accessory Specifications

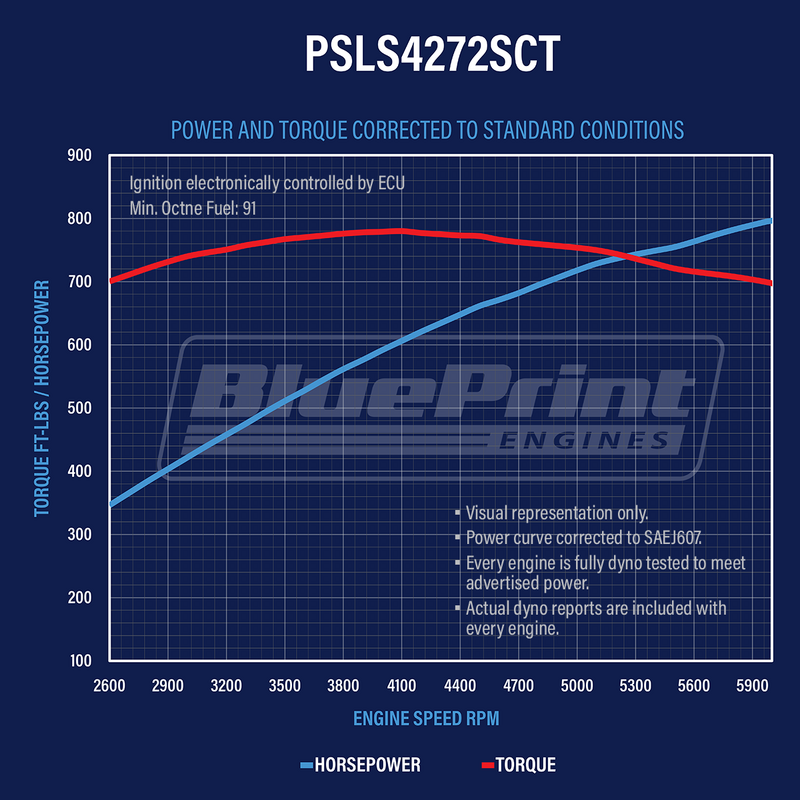

Your BluePrint engine was dyno tested with the parts and specifications listed below.  If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: PSLS4272SCTKB

Fuel Delivery Type: Electronic Fuel Injected

Spark Plug: NGK 3689 (TR6IX)

Spark Plug Gap: .030"

Harmonic Balancer: Non-Weighted

Flexplate/Flywheel: Non-Weighted

Stall Converter: 3200+

Intake Manifold: LS3

Fuel Recommendation: 91-93 Octane

Timing (Initial/Total Advance): Ignition timing and spark advance are controlled by Powertrain Control Module

Firing Order: 1,8,7,2,6,5,4,3
