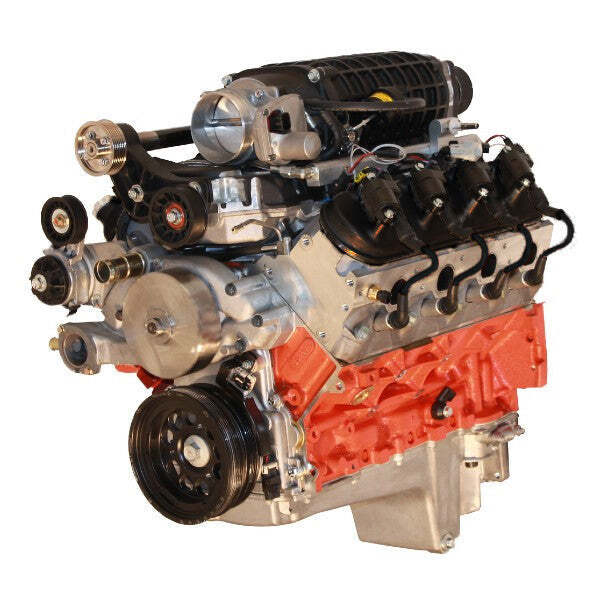

Description:

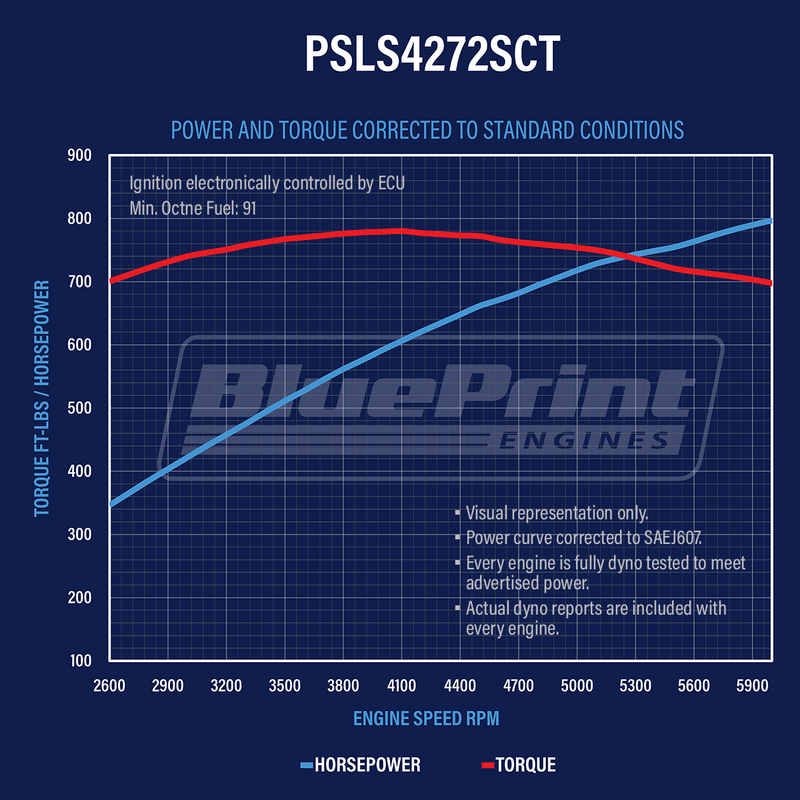

• HP & Torque: 800 HP / 780 FT LBS
• Compression Ratio: 11:1
• Aluminum Heads
• Hydraulic Roller Cam
• Forged Crank
• Forged Pistons

Block:

• OEM Block Machined in the USA!
• 6-Bolt Main
• 4.060" Bored to 4.069
• 1-Piece Rear Main Seal

Rotating Assembly:

• New Forged Crankshaft
• 4.125" stroke
• Forged 6.125" connecting Rods
• Forged Pistons
• Internal Balance

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads -PS8015
• 72cc chamber
• 2.165" intake/1.600" exhaust valves
• 259cc intake/102cc exhaust runners

Cam Specs:

• Roller
• .624 intake .624 exhaust lift
• 239 Intake / 255 Exhaust duration
• @ .050, 114-degree lobe sep.

Ignition Timing:

• ECM supplied with calibration
• Not capable of transmission control
• Transmission controller required

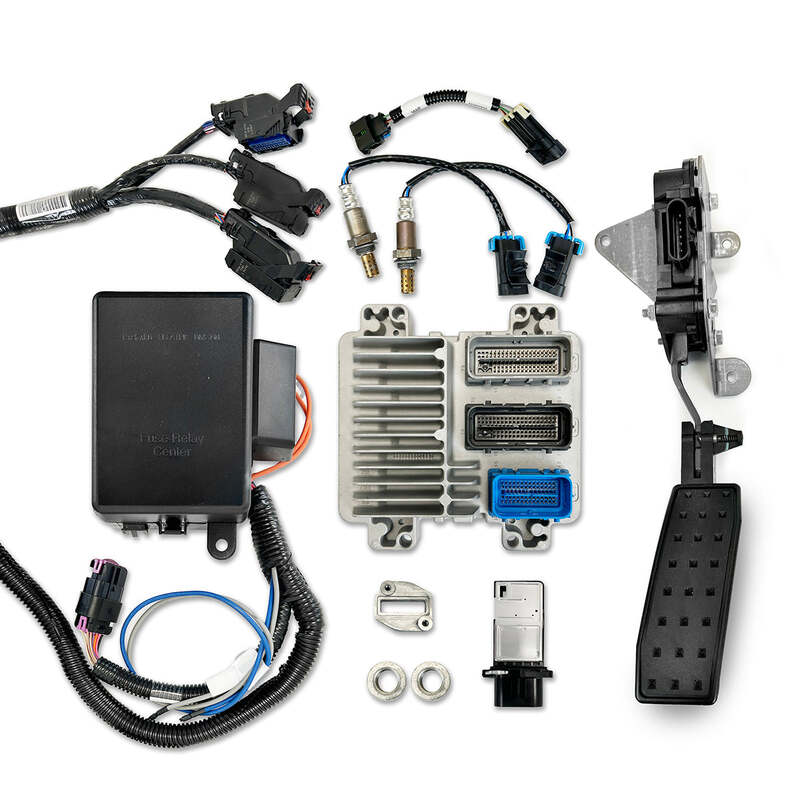

Also Includes:

• 2.3L Magnuson TVS Super Charger
• Upgraded Mototron S107 Injectors
• Electronic Fuel Injection
• Coil Packs
• Valve covers
• Oil pan
• Water Pump
• Belt tensioner
• arm
• All sensors required for engine to run

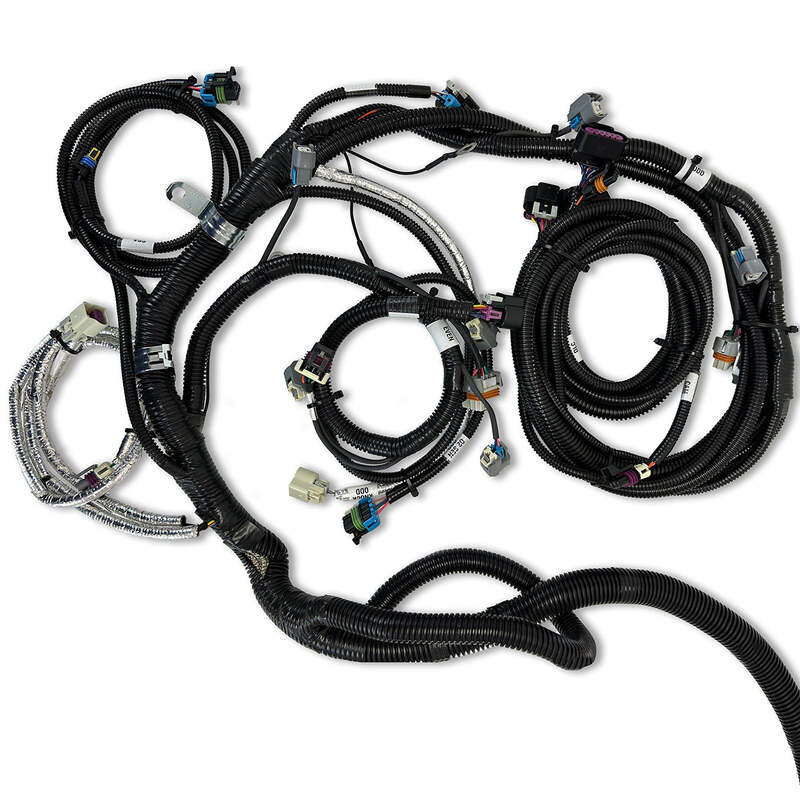

• Wiring harness
• Gas pedal
• Drive by wire throttle body
• Timing cover
• Spark plugs
• Spark plug wires
• Harmonic balancer

Notes:

• Not for use in pollution-controlled vehicles.
• The Included LS controller package is for engine control only. Does not contain any transmission or body control. The ECU comes with calibration that is optimal for our engine, however, please note that vehicle parameters such as gearing, tire size, vehicle weight, air intake, headers, etc. may necessitate additional tuning once installed into your specific vehicle. The included ECU is unlocked for further refinement at your local dyno shop if required.
• BluePrint Engines Recommends Air Intake Kit  to ensure correct MAF calculations and Dyno calibration are maintained with the provided ECU / tuning.
