HP & Torque: 405 HP / 450 FT. LBS

Cylinder Heads: Cast Iron Vortec

Compression Ratio: 9.5:1

Camshaft: Hydraulic Roller Cam - .495 Intake / .502 Exhaust Lift and 220 Intake / 224 Exhaust Duration @ .050 - 114° LSA

Pistons: Hypereutectic

Crankshaft: Steel Crank - 3.750" Stroke and 5.700" Rods



DETAILED INFORMATION

Description:

  • HP & Torque: 405 HP / 450 FT LBS
  • Compression Ratio: 9.5:1
  • Cast Iron Heads
  • Hydraulic Roller Cam
  • Cast Steel Crank
  • Hypereutectic Pistons

Block:

  • New BluePrint cast iron block
  • Square and parallel decked
  • Align honed main bearing bore
  • Cylinders honed on computer controlled machine to within .0002 straightness and roundness
  • Cylinders are sonic tested for thickness
  • 4-Bolt Main
  • 4.000"
  • 1-Piece Rear Main Seal
  • Mech fuel pump provision: Yes
  • Passenger Side Dipstick Drilled and tapped for clutch linkage

Rotating Assembly:

  • New Cast steel crankshaft
  • 3.750" Stroke
  • OEM type 5.700" connecting rods w/ 150,000 psi bolts
  • Hypereutectic pistons
  • External Front/ External Rear

Cylinder Heads:

  • Vortec cast iron cylinder heads
  • 1.94 intake valves
  • 1.50 exhaust valves
  • Hardened push rods
  • Long slot rockers with positive lock adjusting nuts

Cam Specs:

  • Cam Type: Hyd Roller
  • .495 Intake .502 Exhaust
  • 220 Intake / 224 Exhaust duration
  • @ .050 - 114-degree lobe separation

Also Includes:

  • Marine intake manifold
  • valve covers
  • Marine Carburetor (Brand will vary due to supply)
  • Distributor
  • Oil pan

Notes:

  • Replaces Standard Rotation engines only. Not available as reverse rotation.
  • BluePrint Engines recommends the use of a flame arrestor in marine applications and advises checking local laws to ensure compliance with the United States Coast Guard Requirements for Ignition Protection & Fire Resistance.

Engine Accessory Specifications

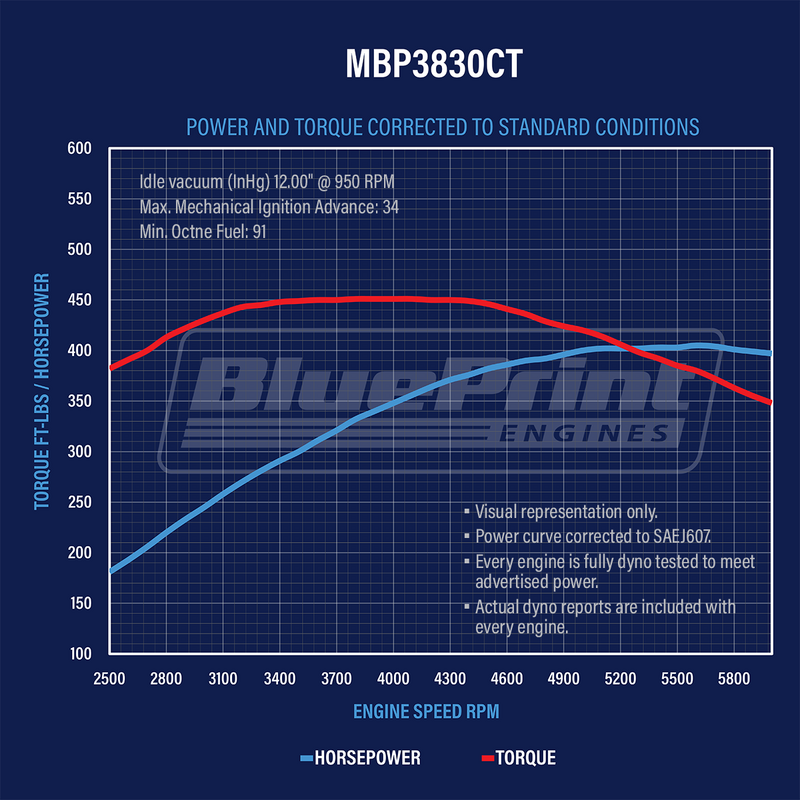

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: MBP3830CTC

Fuel Delivery Type: Carbureted, 750 cfm, electric choke

Spark Plug: Champion 13

Spark Plug Gap: .045"

Harmonic Balancer: Included

Flexplate/Flywheel: External 1 piece, Not included.

Stall Converter: N/A

Intake Manifold: Marine, cast iron

Fuel Recommendation: 91 Octane

Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°

Firing Order: 1,8,4,3,6,5,7,2
