Description:

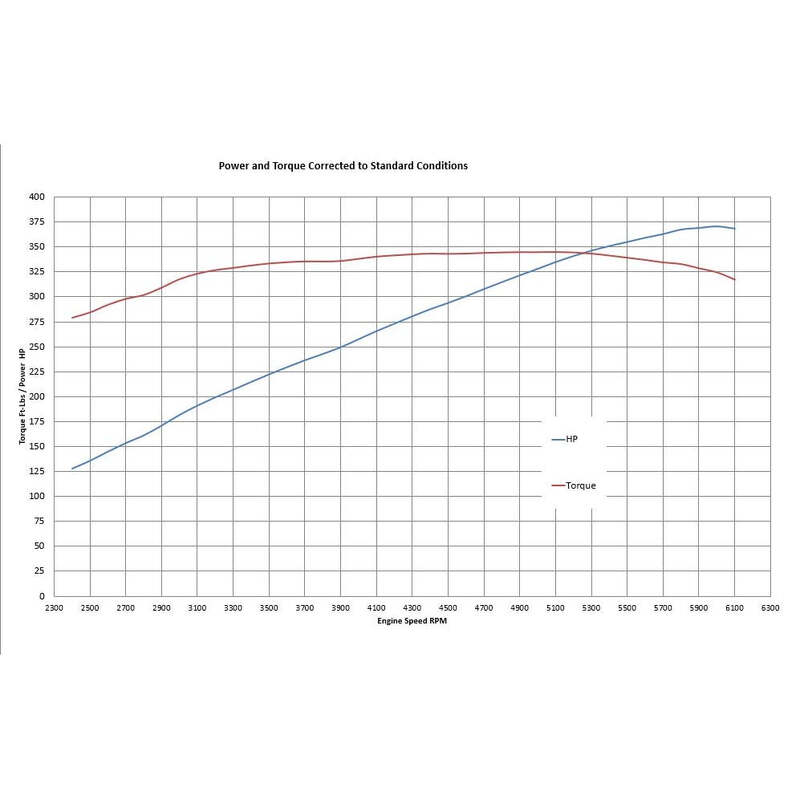

• HP & Torque: 361 HP / 334 FT LBS
• Compression Ratio: 9.4:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Steel Crank
• Hypereutectic Pistons

Block:

• NEW BluePrint Engines' high-strength cast iron block
• Increased deck thickness and strength webbing
• Priority main oiling
• 4-bolt main
• 1-piece rear main seal
• Improved water jacket design

Rotating Assembly:

• 3.000" Stroke
• OEM type 5.090" connecting rods
• Hypereutectic pistons
• 50oz External balance

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads -HP9008
• 60cc chamber
• 2.02" intake/1.60" exhaust valves
• 190cc intake/60cc exhaust runners

Cam Specs:

• Roller Cam
• .533 Intake / .544 Exhaust
• 215 Intake / 220 Exhaust Duration
• @ .050 – 114-Degree Lobe Separation

Ignition Timing:

• 10-16 degrees initial, 32-34 total

Also Includes:

• Front Sump Oil Pan
• Valve covers
• Harmonic Balancer
• Spark plugs and Wires
• Timing cover
• Aluminum intake
• Waterneck
• Thermostat and thermostat housing
• distributor
• Carburetor
• Polished Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump

Notes:

• Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
• This engine is an excellent cruiser and daily driver engine.  This engine makes up to 16 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
