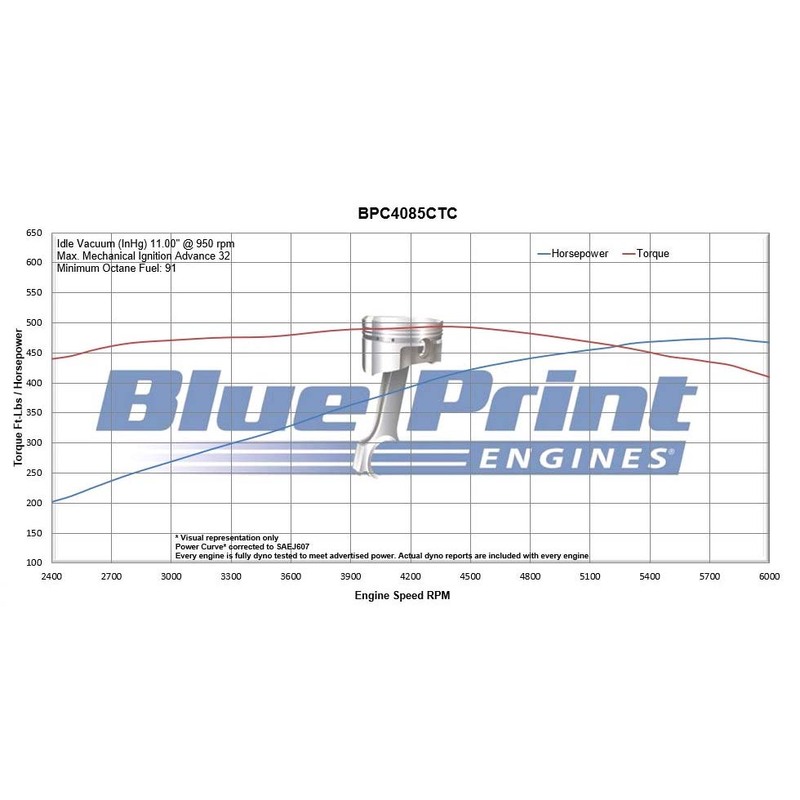

HP & Torque: 465 HP / 494 FT. LBS

Cylinder Heads: BluePrint Engines Assembled, Edelbrock Aluminum Cylinder Heads

Compression Ratio: 10:1

Camshaft: Hydraulic Roller - .544 Intake / .541 Exhaust Lift and 236 Intake / 242 Exhaust Duration @ .050 - 110° LSA

Pistons: Forged

Crankshaft: Steel Crank - 4.000" Stroke and Forged 6.123" Rods

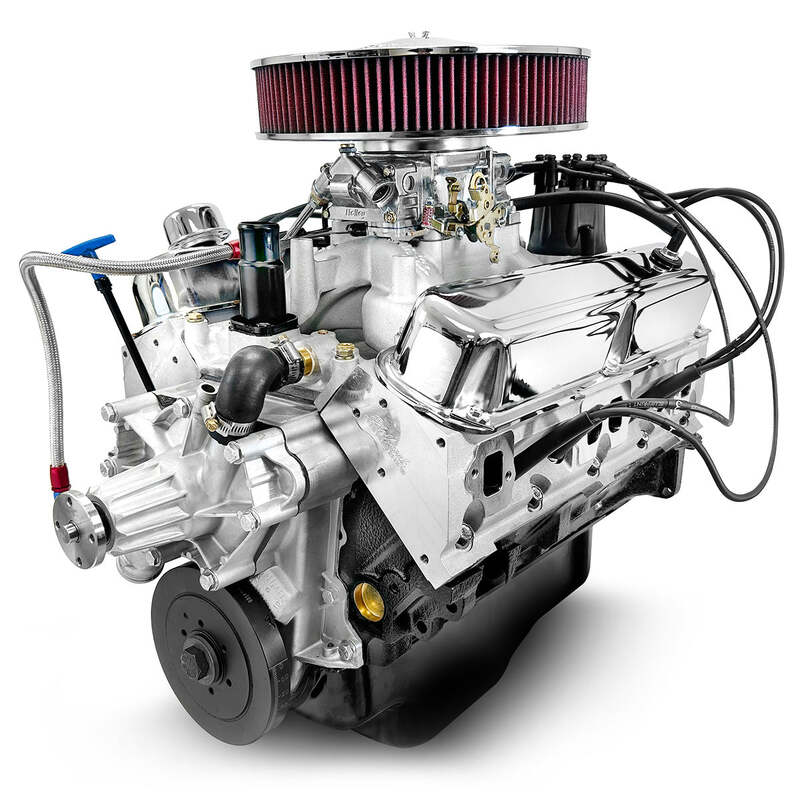

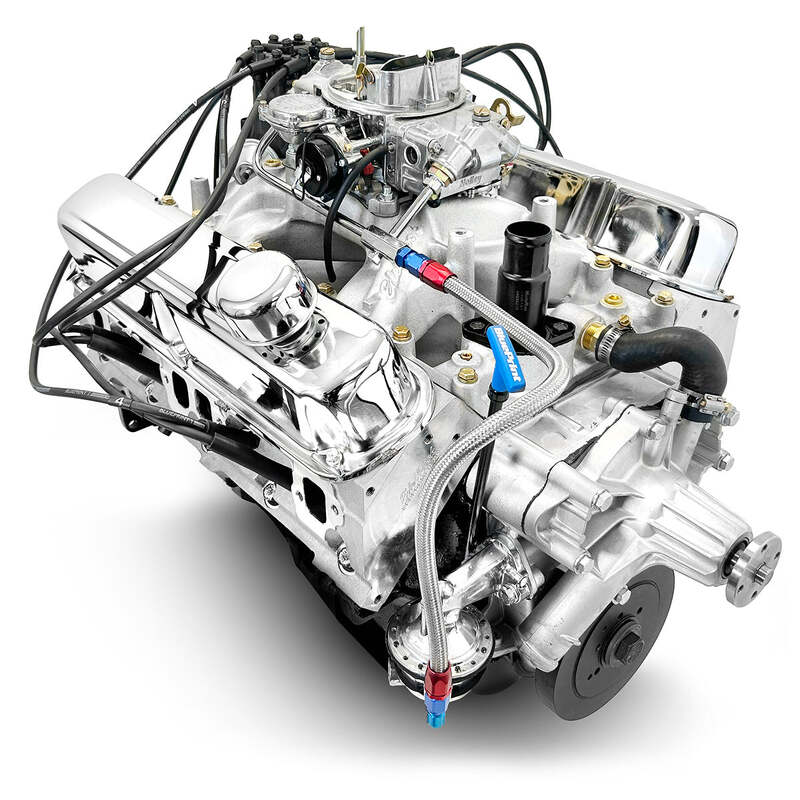

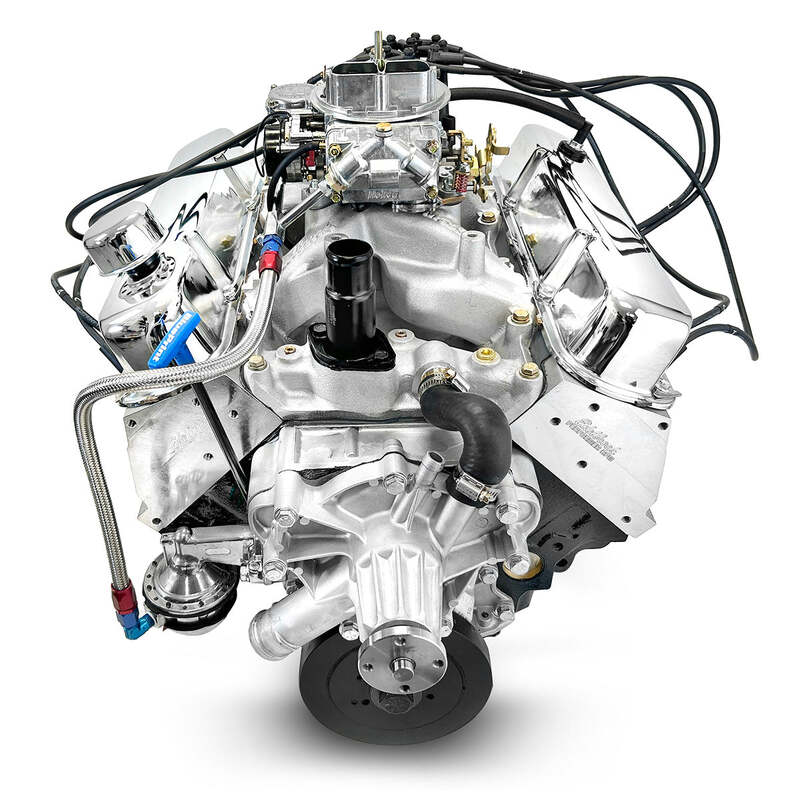

DETAILED INFORMATION

Description:

  • HP & Torque: 465 HP / 494 FT LBS
  • Compression Ratio: 10:1
  • Aluminum Heads
  • Roller Cam
  • Steel Crank
  • Forged Pistons

Block:

  • Hand-picked seasoned Magnum block
  • Square and parallel decked
  • Align honed main bearing bore
  • Cylinders honed on computer-controlled machine to within .0002 straightness and roundness
  • Cylinders are sonic tested for thickness
  • 2-Bolt Main
  • 4.000" Bored .040" over
  • 2-Piece Rear Main Seal
  • Mech fuel pump provision: Yes

Rotating Assembly:

  • New Steel crankshaft
  • 4.000" Stroke
  • Forged Magnum 6.123" connecting rods w/ 150,000 psi bolts
  • Forged pistons
  • External

Cylinder Heads:

  • BluePrint Engines Assembled and Machined Edelbrock 61769 Casting
  • Aluminum Magnum Pattern Cylinder Heads - 58cc chamber
  • Aluminum Roller Rockers
  • 2.02" intake/1.60" exhaust valves
  • 176cc intake/75cc exhaust runners

Cam Specs:

  • Cam Type: Roller
  • .544 Intake .541 Exhaust
  • 236 Intake / 242 Exhaust duration
  • @ .050 - 110-degree lobe separation

Ignition Timing:

  • 34 degrees total at 4000 RPM

Also Includes:

  • Valve covers, oil pan and timing cover, Standard Rotation, Drive side inlet water pump and timing cover, plugs, wires, distributor, water neck, thermostat and thermostat housing, fuel pump and fuel line, harmonic balancer, air cleaner.

Notes:


Engine Accessory Specifications

Your BluePrint engine was dyno tested with the parts and specifications listed below.  If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: BPC4085CTCD

Fuel Delivery Type: Carbureted, 750 cfm, manual choke

Spark Plug: BPP7938 NGK 7938 BKR5E (.750 inch reach, 14mm thread, 5/8 hex, plug)

Spark Plug Gap: .035"

Harmonic Balancer: Magnum Weighted balancer such as BPP360. EXTERNALLY BALANCED '1993-'1997, 7.25" Diameter.

Flexplate/Flywheel: LA 360,  (Pre-Magnum)

Stall Converter: 2200 - 2600 rpm

Intake Manifold: Dual plane, satin aluminum

Fuel Recommendation: 91 Octane

Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°

Firing Order: 1,8,4,3,6,5,7,2

Total Oil capacity with production oil pan, and Correct BPP51515 Filter : 5 Quarts
