Rear Air Ride Suspension with Air Tank Kit Fit For Harley Touring '94-'23

The system uses all nickel-plated brass high-flow high-pressure push-to-connect fittings throughout the entire system and a manifold-style dump valve block for optimum performance.  This kit includes all of the components for a fully functional, fully height-adjustable rear air suspension.   With this kit, you can ride with zero air pressure without rubbing. That means you can cruise around with your bike SLAMMED, or also if you ever lose air pressure for any reason you can still ride without rubbing your tire against your fender (on most '09-Later models, or '08-earlier models with the stock rear tire, contact us for details).

Waterproof,dust-proof (IP): IP54

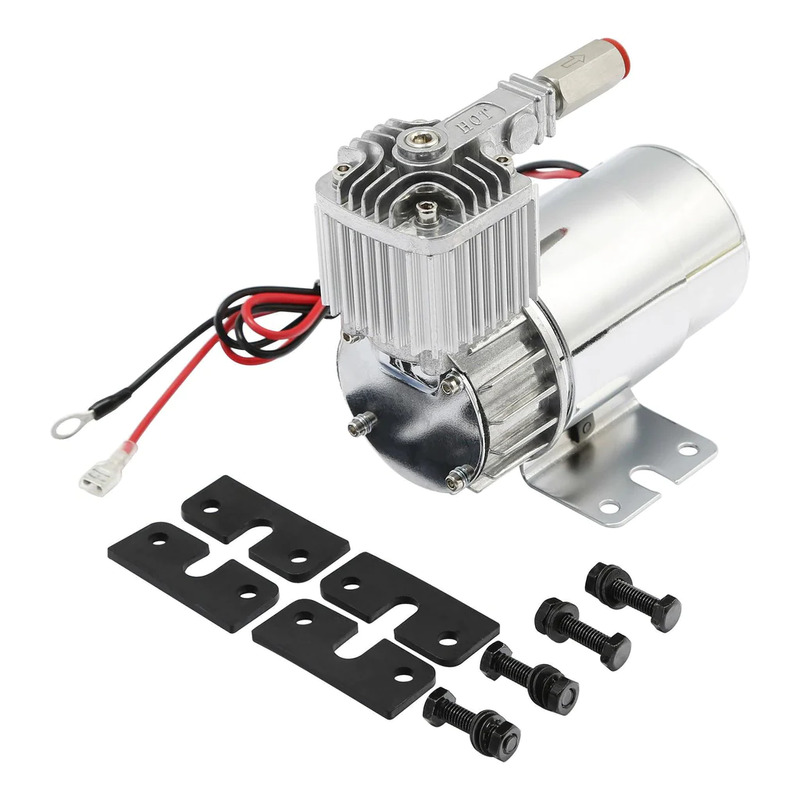

Output Voltage: DC-12V
Working Period:15%@100PSI
Maximum Working Voltage:130PSI(9.1KG/c㎡)
Maximum current:14A
Pump's Size(L×W×H):152mm × 88.5mm × 135mm
The Ventilating Flux: 1.27CFM@0PSI, When under 0PSI, the rate of flow is approx. 36.0L/MIN. (Calculation formula: 1CFM=28.3185 L/MIN)

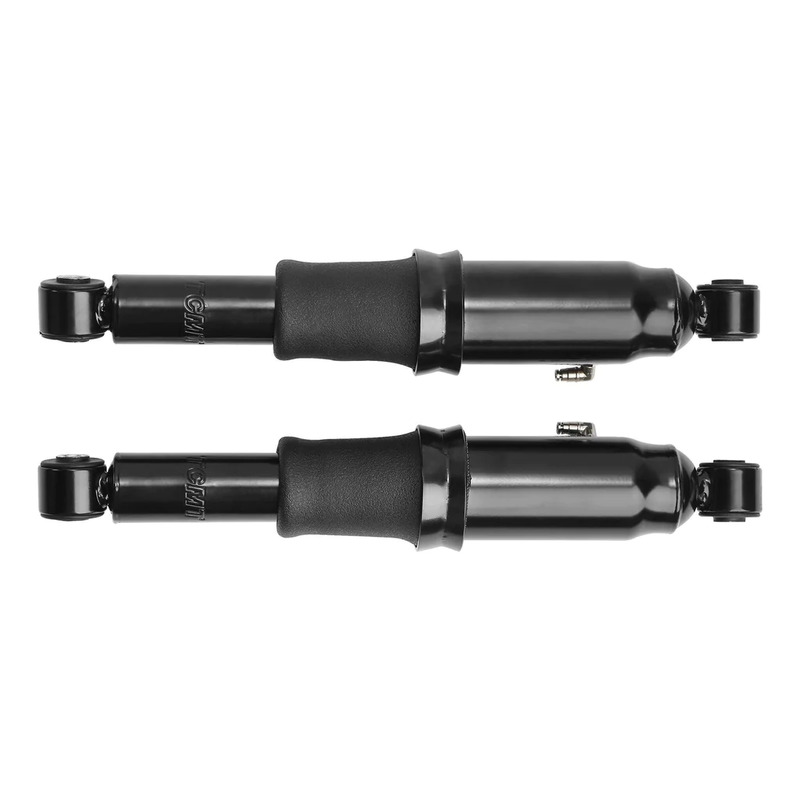

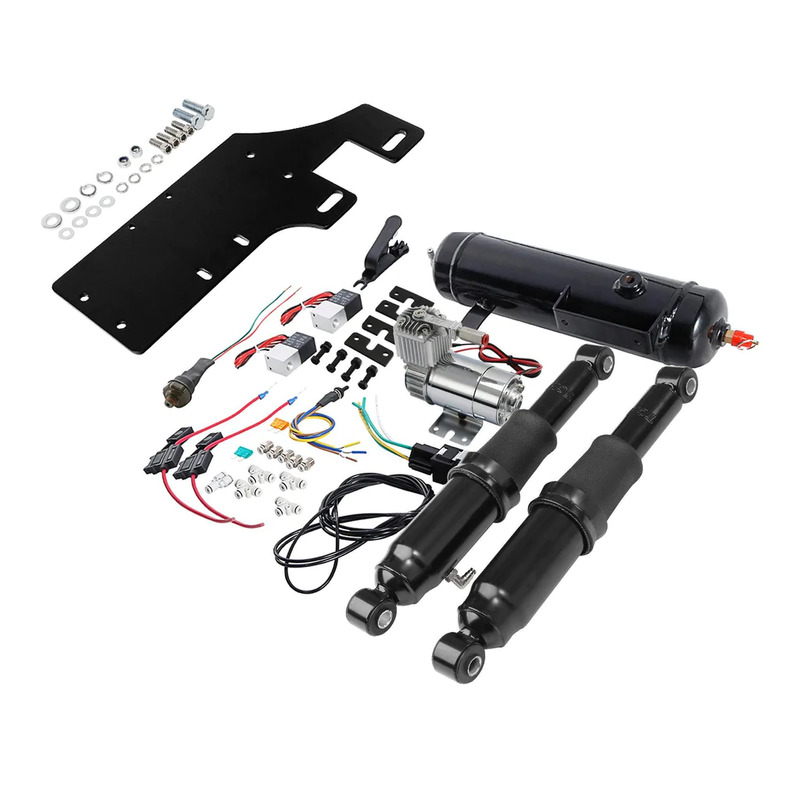

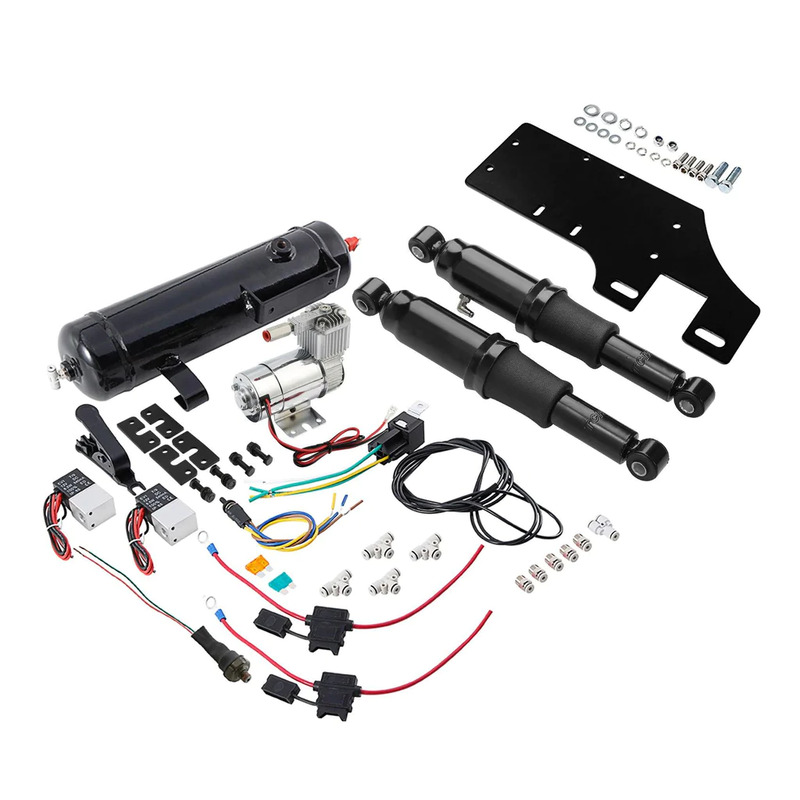

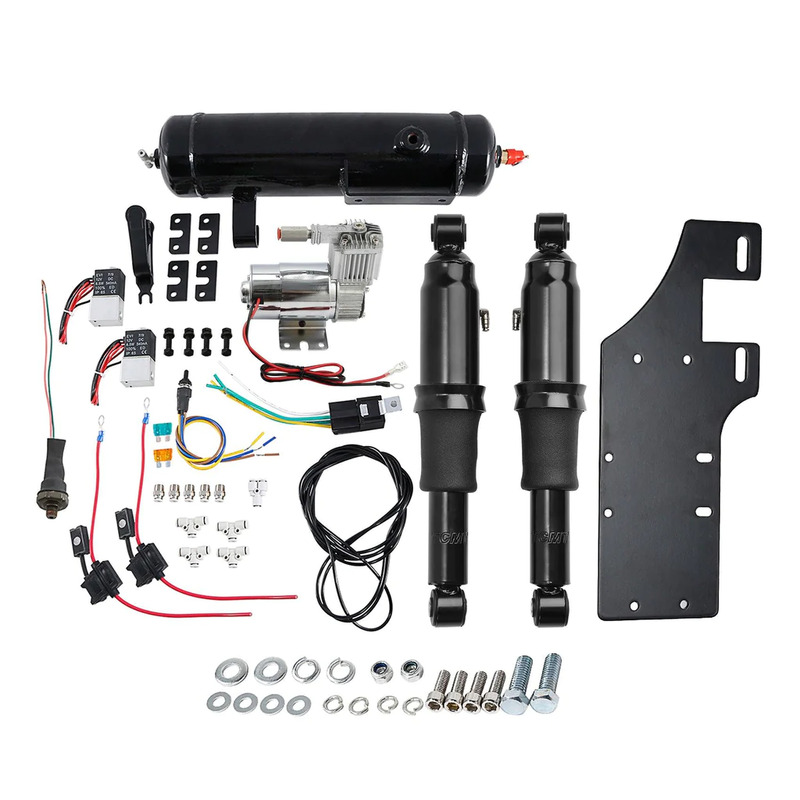

* Complete kit assembled to replace your stock touring shocks with height-adjustable air shocks.
* Fully Collapsed approx. 9.64inches(24.5cm); fully extended 14.17inches(36cm).
* This kit will allow you to lower your bike by 2 to 3 inches with all of the air released.
* The air is up to stock ride height for a smooth ride in a matter of seconds.
