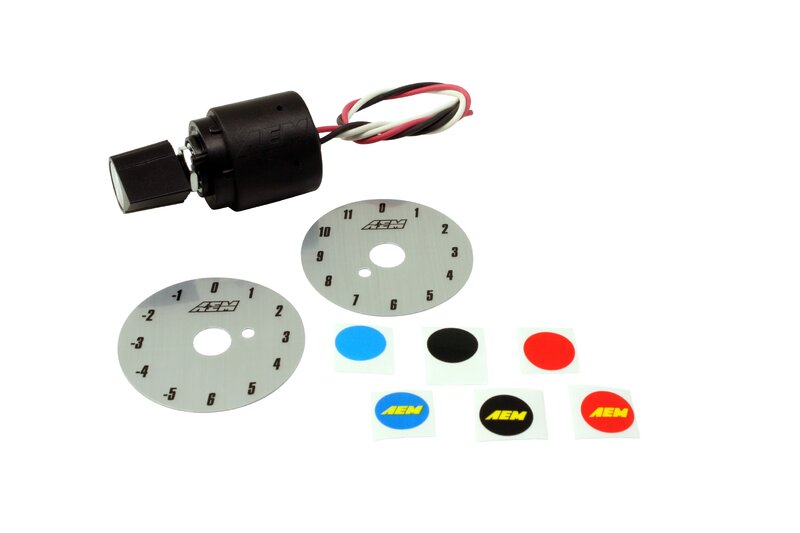

The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals. Click here for more AEM sensors and connectors

Trim potentiometer can be used with virtually any engine management system
Includes a weatherproof-over-molded flying lead that has 12-inch insulated, color-coded wires, two brush silver Trim Position decals, and black AEM logo adjustment knob
Adjusts a number of trims, including ignition timing, fuel, boost, etc.

Features:
12 Position Trim Pot Performance SpecificationsTotal Resistance: 14.3KOCycles Minimum: 10,000Positions: 12Degree Rotation: 330Mounting: 3/8" HoleJam Nut: 1/2" HexKnob Set Screw: 1/16" AllenSupply Current: 5 VdcOver mold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)
