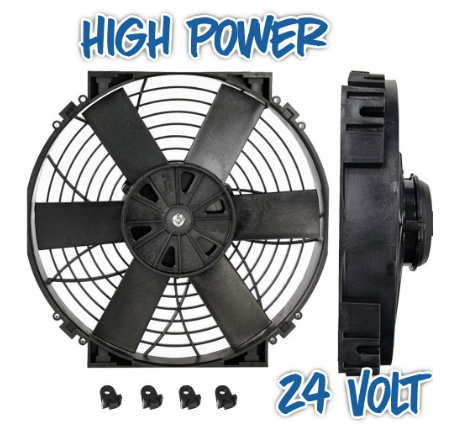

12" High Power Thermatic® Electric Fan (24 Volt) (Part #0156)

All Davies Craig Thermatic® Fan are packaged with fan assembly (motor, fan blade, shroud and mounting feet) and are available with a Brushed or Long Life Brushless Motor.

Thermatic® Electric Fans are suitable for use as:

  • Radiator cooling fans
  • Air conditioner condenser fans
  • Transmission and engine oil cooler fans

It provides constant or variable air flow, increased fuel economy, improved air conditioning performance, cooler engine temperatures, low profile, high performance, increased engine power and fully reversible blades and polarity for bi-directional air flow.

These fan assemblies are set up for upstream/pusher applications from the factory.

For downstream applications, the fan blade must be removed and turned over and the wiring adjusted as per the instructions. Always check that the fan blade rotates in the direction shown by the arrows on the blade before making a permanent wiring connection and prior to fastening the unit to the radiator.

SPECIFICATIONS

Airflow 1250 CFM (ft³/min)
Maximum Current 22A (12 Volt), 12A (24 Volt)
Weight 1.6 kg (3.5 lb)
Height 293 mm
Width 293 mm
Depth 86 mm



COMPONENTS

Part # Description
#0156 12" High Power Thermatic® Electric Fan (24V)
#0604 Mounting feet
